Stainless Steel Sensor 25~-500kN Module Low Cost Industrial
Weighing Single Point Load Cell
1. Descriptions

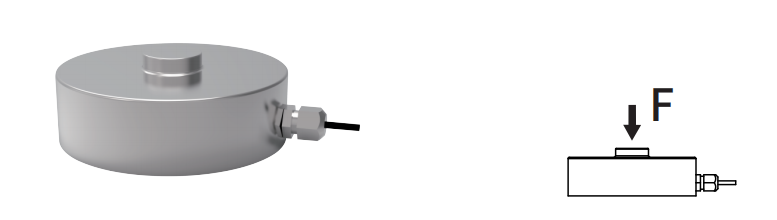

25,50,100,250,500kN Miniature Force Sensor FA116 is a model of our
brand FIBOS FA1-Series, Miniature Force Sensor FA116 can be used to
measure force 25kN,50kN,100kN,250kN,500kN capacity, its Rated output range is
2.0±1%mV/V, its Creep(30min),Hysteresis and Repeatability all
≤0.1%F.S., and its Non-linearity ≤0.1%F.S..
Force Sensor FA116 Sensitivity is 2.0±1%mV/V, the Zero Balance is ±0.05mV/V.
Force Sensor FA116 creep(30min) ≤0.1%F.S.. The non-linearity ≤0.1%F.S.. Hysteresis
≤0.1%F.S.. Repeatablity ≤0.1%F.S..
Force Sensor FA116 Input impedance is 385/780±20Ω, the output impedance is
350/700±10Ω.
Force Sensor FA116 Temp.effect on output is 0.05%F.S./10ºC, Temp.effect on zero is
0.05%F.S./10ºC.
Force Sensor FA116 Insulation Resistance ≥5000MΩ/100V(DV).
Force Sensor FA116 Recommended Excitation is 5-15V, the Maximum Excitation is 20V.
Force Sensor FA116 Compensated Temp Range is -10~60ºC, the Operating Temp Range is
-20~80ºC.
Force Sensor FA116 safe overload is 150%F.S.. The ultimate overload is 200%F.S..
The cable size is ∅5*10m.
The weight is 1kg or customized.
2. Specifications
| Product name | Miniature Force Sensor |
| Capacity | 25,50,100,250,500kN |
| Rated output | 2.0±1%mV/V |
| Zero Balance | ±0.05%F.S. |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 385/780±20Ω |
| Output impedance | 350/700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5x10m |
| Weight | 1kg |
| Material | Stainless Steel |

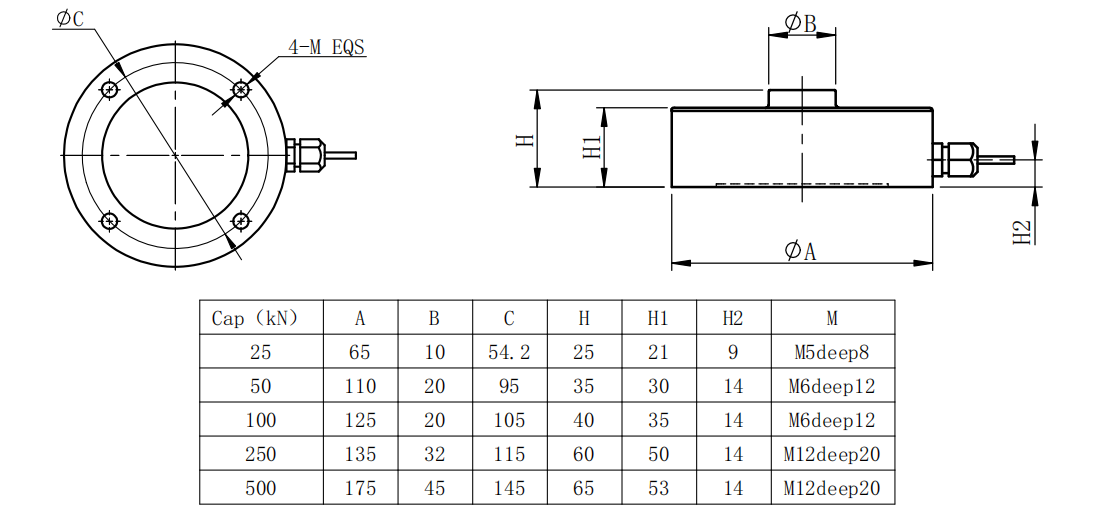

3. Dimension
4. Application
25,50,100,250,500kN Miniature Force Sensor FA116 can be used for jewelry scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
