5~5000N. M 0~8000rpm Dynamic Torque Sensor IP66 Rotary Torque
Sensors
1. Descriptions
5-5000N.M 0~8000rpm 0-90%RH IP66 Dynamic Torque Sensor FA606 is a
model of our brand FIBOS FA6-Series, Dynamic Torque Sensor FA606
can be used to measure force ranges from 5N.m to 5000N.m capacity,
its Speed range is 0~8000rpm, its Non-linearity ≤0.3%F.S., its
Hysteresis ≤0.5%F.S., its Repeatability ≤0.2%F.S..
The torque sensor is a precision torque measurement system with
wireless power supply and signal transmission. It can accurately
measure torque, speed and angle of rotation and offers both voltage
and frequency signal outputs.
2. Specifications
| Product name | Dynamic Torque Sensor |
| Capacity | 5~5000N.m |
| Output signal | 5~15Khz/4-20mA/0-5∨10V |
| Speed range | 0~8000rpm |
| Zero Balance | ±2%mV/V |
| Non-linearity | ≤0.3%F.S. |
| Hysteresis | ≤0.5%F.S. |
| Repeatability | ≤0.2%F.S. |
| Insulation resistance | ≥2000MΩ/100V(DC) |
| Recommended excitation | ±15VDC(Frequency signal) 24VDC(Voltage,current signal) |
| Operating temp range | -20~60 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | 3m |
| IP Class | IP66 |
| Relative humidity | 0-90%RH |

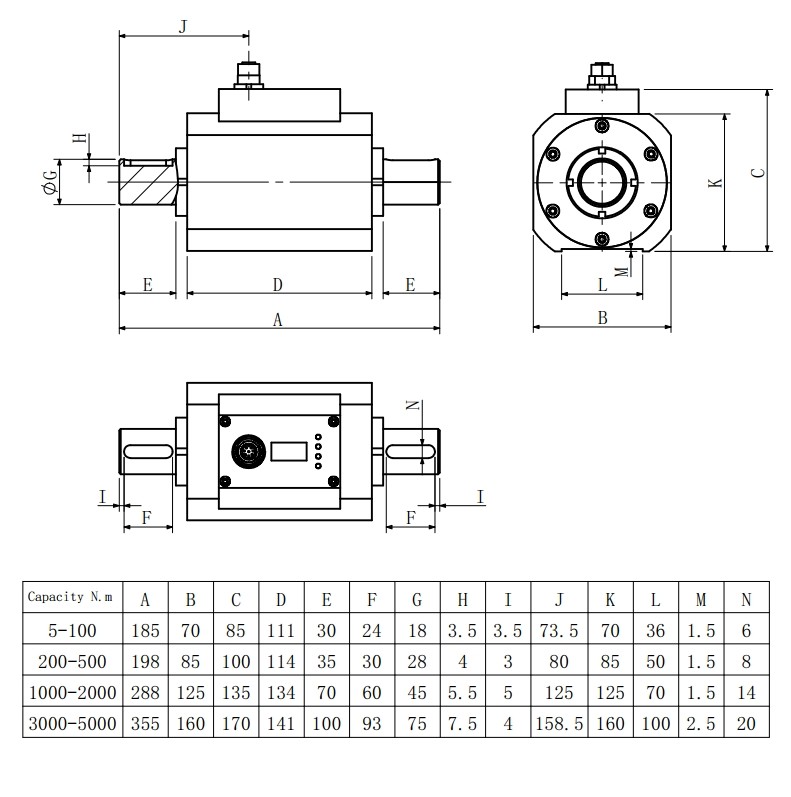

3. Dimension
4. Application
5-5000N.M 0~8000rpm 0-90%RH IP66 Dynamic Torque Sensor FA606 can be used for electric motors.
Dynamic torque measurement for railway locomotive power, automotive
power, tractor power, aircraft power, ship power, mining machinery
power, sewage treatment systems.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
