IP68 2.0mv/V Shear Beam Load Cell 10-100kg Range CE Certificate
Weight Sensor
1. Descriptions

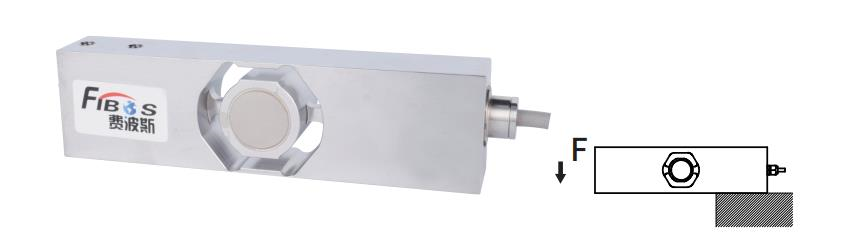

IP68 2.0mv/V Stainless Steel Load Cell 10-100kg Range CE
Certificate Weight Sensor shear beam load cell FA508 is a model of
our brand FIBOS FA5-Series, Strain Gauge Weight Sensor Tension
Force Sensor FA508 can be used to measure tension force 10-100kg, Shear beam load cell adopts 6-wire connection mode, which can be used for platform
scale, belt scale and hopper scale, etc., and it can be customized
specifications. Shear beam load cell its IP Class is IP68.
High precision, Shear beam load cell suitable for almost any tank, batching, platform scale and level
monitoring applications.
Shear beam load cell Made of stainless steel, it is strong and can be used in harsh
environments.
Standard size, multiple range optional.
2. Specifications
| Product name | shear beam Load Cell |
| Capacity | 10,20,50,100kg or customized |
| Sensitivity | 2.0±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.0166%F.S. or customized |
| Non-linearity | ≤0.0166%F.S. or customized |
| Hysteresis | ≤0.0166%F.S. or customized |
| Repeatability | ≤0.018%F.S. or customized |
| Input impedance | 390±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.0175%F.S./10 ℃ |
| Temp.effect on zero | 0.0125%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 12V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~50 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5.4x3000mm or customized |
| Weight | 0.5kg or customized |
| Material | Stainless steel or customized |
3. Dimension
4. Application
IP68 2.0mv/V Stainless Steel Load Cell 10-100kg Range CE
Certificate Weight Sensor shear beam load cell FA508, can be used for platform scale, belt scale and hopper scale,
etc., and it can be customized specifications. its IP Class is IP68.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
