10~500kg Capacity Shear Beam 20v Sensor Stainless Steel Weighing
Load Cell
1. Descriptions:
0.3-5kg 0.0166%F.S.stainless steel shear beam load cell For
industrial floor Scale FA510 is a model of our brand FIBOS
FA5-Series, shear beam load cell FA510 can be used to measure
weight 10N,20,50,100,200kg and 500kg capacity, its Rated output range is 2.0±0.05mV/V, its Zero balance range is ±2mV/V., its Creep(30min)≤0.0166%F.S.
2. Specifications:
| Product name | stainless steel shear beam load cell |
| Capacity | 10,20,50,100,200,500kg |
| Rated output | 2.0±0.05mV/V |
| Zero balance | ±0.02mV/V |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.018%F.S. |
| Hysteresis | ≤0.017%F.S. |
| Repeatability | ≤0.018%F.S. |
| Input resistance | 380±5Ω |
| Output resistance | 350±5Ω |
| Temp.effect on output | 0.08%F.S./10 ℃ |
| Temp.effect on zero | 0.125%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40 ℃ |
| Operating temp range | -30~70 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀5.4x3000mm |
| Weight | 0.5kg |
| Material | Stainless steel |

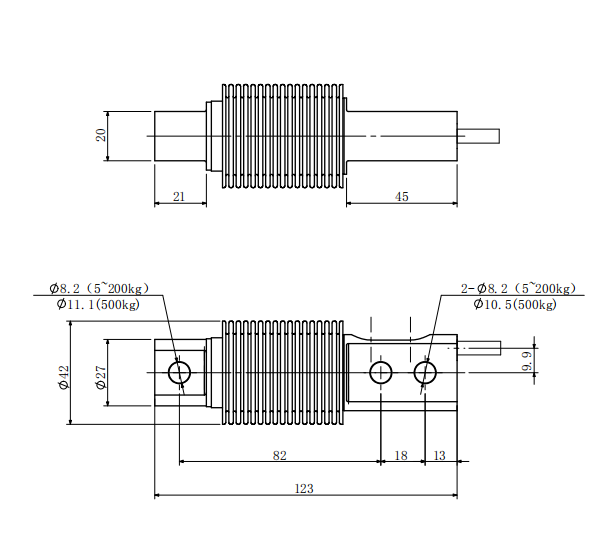

3. Dimension:
4. Application:
Shear beam load cell is used in low profile scale and process applications,such as industrail floor
scale,barrel scales, low to medium capacity vessel weighing and so
many on
