FA510 Stainless Steel 100kg Shear Beam Load Cell for construction
1. Descriptions
Stainless steel Weight Sensor FA510 is a model of our brand FIBOS
FA5-Series, it belongs to Single Point Weight Sensor category,
Single Point Weight Sensor FA510 can be used to measure weight
ranges from 500kg up to 4.4t, its Creep(30min) ≤0.0166%F.S., its
Non-linearity,Hysteresis and Repeatability all ≤0.017%F.S..
2. Specifications
| Product name | FA510 Stainless Steel 100kg Shear Beam Load Cell for construction |
| Capacity | 100kg |
| Sensitivity | 2.0±0.05mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.018%F.S. |
| Hysteresis | ≤0.017%F.S. |
| Repeatability | ≤0.018%F.S. |
| Input impedance | 390±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.008%F.S./10 ℃ |
| Temp.effect on zero | 0.0125%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5.4*1.5m |

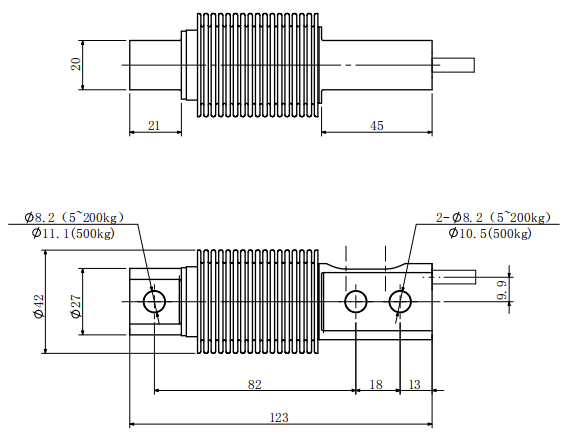

3. Dimension
4. Application
100kg Single Shear Beam Load Cell FA510 could be used for inmdustrial floor scales.
