DC 18V~30V ≤±0.05%F.S. The Operating Temp Range -30~85℃ IP64 Load
Cell Amplifier
1. Descriptions
DC 18V~30V ≤±0.05%F.S. The Operating Temp Range -30~85℃ IP64 Load
Cell Amplifier FA01-A4 belongs to FA01 which is in force transducer
instrument and amplifier category, Load Cell Amplifier FA01-A4 its Sampling frequency ≥5KHZ, its Sensor excitation voltage range is
5VDC±2%,100mA or 12VDC can be optional.
2. Specifications
| Product name | Load Cell Amplifier |
| Output specifications | 0.4~6mV/v |
| Display accuracy | ≤±0.05%F.S. |
| Sensor excitation voltage | 5VDC±2%,100mA(or 12VDC optional) |
| Power supply | DC:18V--30V |
| A/D performance | 24-bit, Delta-Sigma method |
| Rated output | 0~5v,0~10v,0~±5v,0~±10v,0~20mA,0~20mA (All the above signals can be switched, no need to return to the
factory) |
| Output rate | 10,40,640,1280 Times/sec |
| Operating temp range | -30~85℃ |
| Surrounding environment | Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| Sampling frequency | ≥5KHZ |
| IP Class | IP64 |

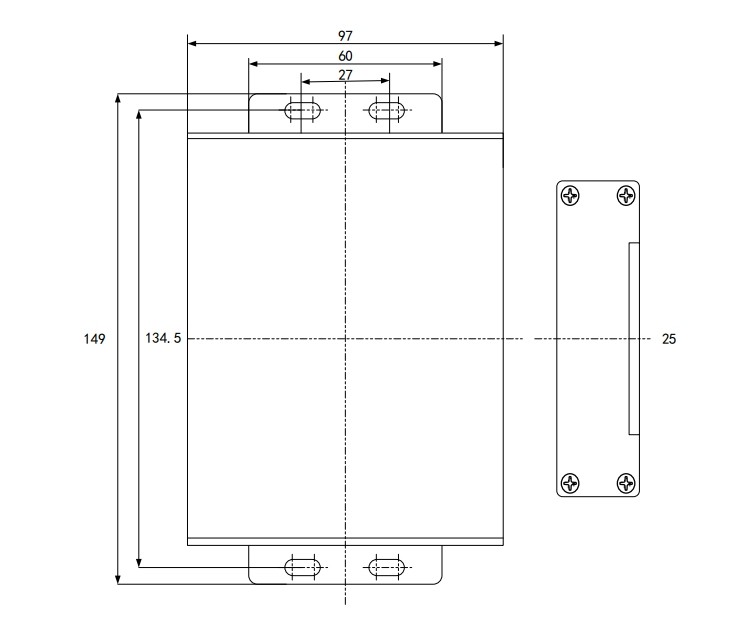

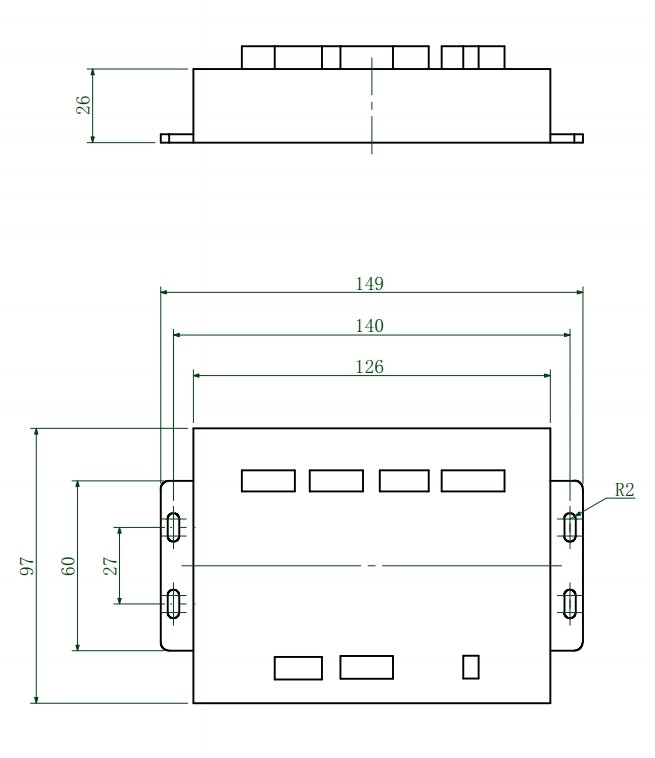

3. Dimension
4. Application
DC 18V~30V ≤±0.05%F.S. The Operating Temp Range -30~85℃ IP64 Load
Cell Amplifier FA01-A4 could be applied for force value displaying.
