Weighing Capacity Range 0-1000kg,1ton-30ton,
50ton,70ton,100ton,250ton High Precision Spoke load cell
1. Descriptions
Weighing Capacity Range 0-250ton High Precision Spoke load cell has these functions:
1. Low height, small deformation and small overall dimension
2. Stainless steel material, high temperature can be customized
3. Protection grade IP674. Explosion-proof grade: Ex ia IIC T4 Ga;
Ex iaD 20 T1355.
2. Specifications

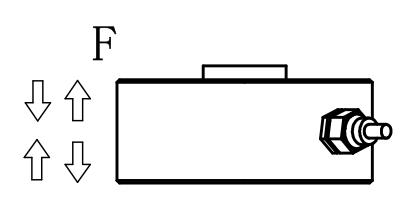

| size drawing | Force direction |
 |  |
Specifications | Technique |
Capacity | 50,100,200,500kg,1t |
Reted output | 2.0±10%mV/V |
Zero Balance | ±1%mV/V |
Creep(30min) | ≤0.03%F.S. |
Non-linearity | ≤0.05%F.S. |
Hysteresis | ≤0.05%F.S. |
Repeatability | ≤0.03%F.S. |
Input impedance | 780±20Ω |
Output impedance | 700±10Ω |
Temp.effect on output | 0.05%F.S./10 C |
Temp.effect on zero | 0.05%F.S./10 C |
Insulation resistance | ≥5000MΩ/100V(DC) |
Recommended excitation | 10V |
Maximum excitation | 15V |
Compensated Temp Range | -10~40 C |
Operating Temp Range | -20~70 C |
Safe overload | 150%F.S. |
Ultimate overload | 200%F.S. |
Cable size | 6x5000mm |
Material | Alloy steel/Stainless steel |
4. Application
The weighing sensor FA120series spoke load cell is applicable to
tank weighing, automatic assembly, new energy product assembly,
medical inspection, robot field, mold assembly, and other
industrial testing, measurement, and control systems
Sensor FA120 weighing sensor spoke load cell can be used for
weighing in industrial automation measurement control systems.
Used for electronic belt scales, silo scales, batching scales,
electromechanical combination scales, hook scales, and other force
measurement and control, and computer-controlled batching.
5. Company overview
The core team of Fibos has 20 years of experience in the design and
production of advanced sensors in Germany. We continuously develop
and produce: precision micro and small force sensors, dynamic and
static torque sensors, six-dimensional force, three-dimensional
force, multi-dimensional force sensors, load cells, custom ring
force sensors, thread force sensors, thread preload force sensors,
sensors for robots, tension series and various non-standard force
sensors, etc. The company produces pressure force sensors: accurate
measurement, low height, small deformation, high precision, good
stability, fast response, easy installation, long life, and
complete specifications, and sizes, not only for a push and pull
meters, hopper scales, a variety of industrial weighing systems,
automotive press assembly, automated assembly, 3C product testing;
also used in new energy product assembly, medical testing,
textiles, robotics, mold assembly, wind energy, nuclear power, and
ships, etc. The product dynamic response frequency is high and also
can accept custom specifications. In the application of
high-frequency loud, fatigue strength after the test, life use up
to 100 million times, suitable for all kinds of aircraft, and
automotive testing occasions.
6.FAQ
Q0: How to choose sensors?
If you need to purchase a sensor, please provide us with the data
of its use, range, and installation size,
If other conditions such as high-temperature resistance, water
resistance, or explosion simulation (overload simulation) are
required,
If our existing models can meet the requirements, we will directly
provide existing products,
If not, we will directly conduct non-standard customization, and we
will make detailed quotations and delivery time.
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
