1knm Static Torque Measurement 10knm , 5v Load Cell Torque Measurement

    Buy cheap 1knm Static Torque Measurement 10knm , 5v Load Cell Torque Measurement from wholesalers

    Buy cheap 1knm Static Torque Measurement 10knm , 5v Load Cell Torque Measurement from wholesalers
    • Buy cheap 1knm Static Torque Measurement 10knm , 5v Load Cell Torque Measurement from wholesalers
    • Buy cheap 1knm Static Torque Measurement 10knm , 5v Load Cell Torque Measurement from wholesalers
    • Buy cheap 1knm Static Torque Measurement 10knm , 5v Load Cell Torque Measurement from wholesalers
    • Buy cheap 1knm Static Torque Measurement 10knm , 5v Load Cell Torque Measurement from wholesalers

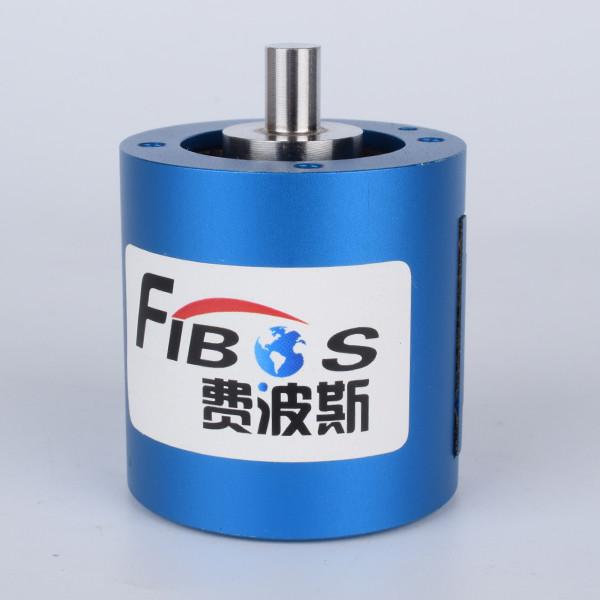

    1knm Static Torque Measurement 10knm , 5v Load Cell Torque Measurement

    Ask Lasest Price
    Brand Name : FIBOS
    Model Number : FA608
    Certification : ISO CE RoHS
    Price : To Be Negotiated
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 Pieces per Month
    Delivery Time : 1-7 work days
    • Product Details
    • Company Profile

    1knm Static Torque Measurement 10knm , 5v Load Cell Torque Measurement

    0.1,0.5,1,5,10,50,100,500kN.m Or Customized Static Torque Sensor Force Torque Sensor


    1. Descriptions

    0.1,0.5,1,5,10,50,100,500kN.m Or Customized Static Torque Sensor Force Torque Sensor FA608 is a model of our brand FIBOS FA6-Series, Static Torque Sensor Force Torque Sensor FA608 can be used to measure Static Torque force ranges from 0.1kN.m,0.5kN.m,1,5kN.m,10kN.m,50kN.m,100kN.m and 500kN.m or customized capacity.


    2. Specifications


    Product nameForce Torque Sensor
    Capacity0.1,0.5,1,5,10,50,100,500kN.m or customized
    Rated output2.0±1%mV/V
    Zero Balance±1%F.S.
    Creep(30min)≤0.016%F.S. or customized
    Non-linearity≤0.016%F.S. or customized
    Hysteresis≤0.017%F.S. or customized
    Repeatability≤0.016%F.S. or customized
    Input impedance780±20Ω
    Output impedance700±10Ω
    Temp.effect on output0.02%F.S./10 ℃
    Temp.effect on zero0.02%F.S./10 C
    Insulation resistance≥5000MΩ/100V(DC)
    Recommended excitation5~15V
    Maximum excitation20V
    Compensated Temp Range-10~40 ℃
    Operating Temp Range-10~70 ℃
    Safe overload150%F.S.
    Ultimate overload200%F.S.
    Cable size⌀3x4000mm or customized

    3. Dimension

    Need to be customized


    4. Application

    0.1,0.5,1,5,10,50,100,500kN.m Or Customized Static Torque Sensor Force Torque Sensor FA608 could be used for pneumatic torque wrench.


    5.FAQ

    Q1: What is your terms of delivery?

    A: EXW, FOB, CFR and CIF.


    Q2: Can you produce according to the samples?

    A: Yes, we can produce according to your samples or technical drawings.


    Q3:What is your sample policy?

    A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.


    Q4: What's your quality guarantee policy?

    A: Quality guarantee: 12 months.

    If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

    And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
