0-200N Raw Sensitivity 0.6~0.8 Stainless Steel Column Type Load
Cell
1. Descriptions
0-200N Raw Sensitivity 0.6~0.8 Stainless Steel Column Type Load
Cell FA906 is a model of our brand FIBOS FA9-Series, Column Type
Load Cell FA906 can be used to measure load ranges up to 200N capacity, its Raw sensitivity range is 0.6~0.8,
its Rated output range is 4~20mA, and its Zero Balance range is
±1%mV/V.
2. Specifications
| Product name | Column Type Load Cell |
| Capacity | 0-200N (Raw sensitivity0.6~0.8) |
| Rated output | 4~20mA |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.03%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.02%F.S. |
| Input impedance | 385±20Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |
| Material | Stainless steel |

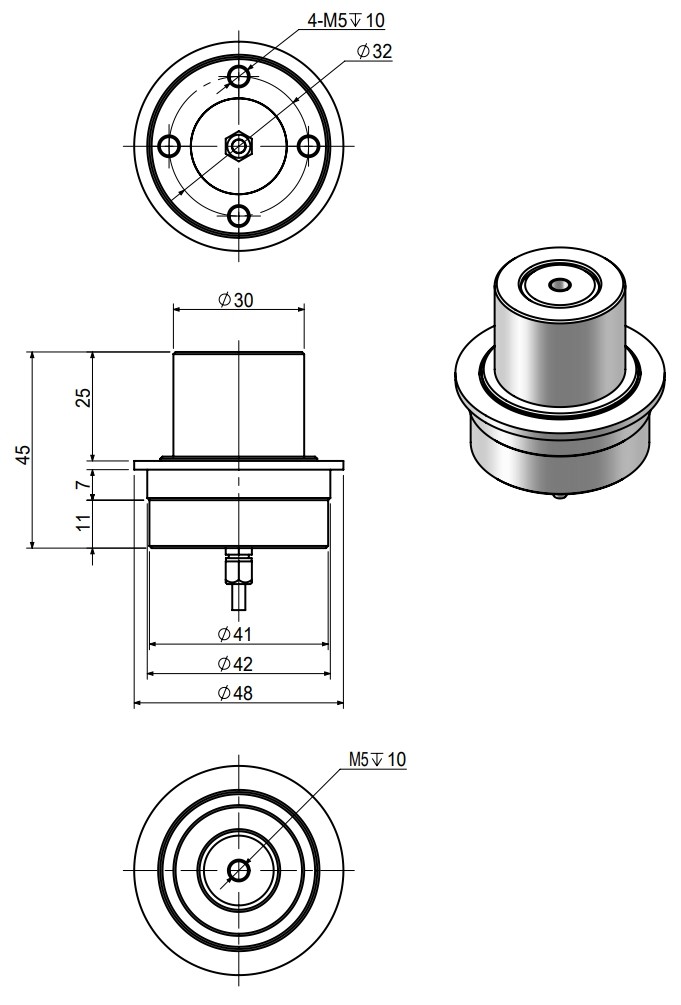

3. Dimension
4. Application
0-200N Raw Sensitivity 0.6~0.8 Stainless Steel Column Type Load
Cell FA906 can be applied to impact testing equipment.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
