Input Load 4 * 350~1000Ω Sensors IP65 Alumnium Alloy Load Cell
Amplifier
1. Descriptions
Input Load 4 * 350~1000Ω Sensors IP65 Alumnium Alloy Load Cell
Amplifier FA14 is a model of our brand FIBOS FA Amplifier and
instrument series, Load Cell Amplifier FA14 its Comprehensive
accuracy ≤0.1%F.S., its Sensor excitation voltage range is
5VDC±2%,100mA or 12VDC optional, it can connect to 4 units of
350~1000Ω sensors.
2. Specifications
| Product name | Load Cell Amplifier |
| Output specifications | 0.4~6mV/V |
| Comprehensive accuracy | ≤0.1%F.S. |
| Sensor excitation voltage | 5VDC±2%,100mA (or 12VDC optional) |
| Power supply | DC:15~30V |
| Input load | Up to 4 units of 350~1000Ω sensors can be connected |
| Interface | RS485/232 |
| Analog | 0~10V/4~20mA |
| Operating temp range | -30~80 ℃ |
| Sampling frequency | ≥100HZ |
| Surrounding environment | Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| IP class | IP65 |
| Material | Alumnium alloy |

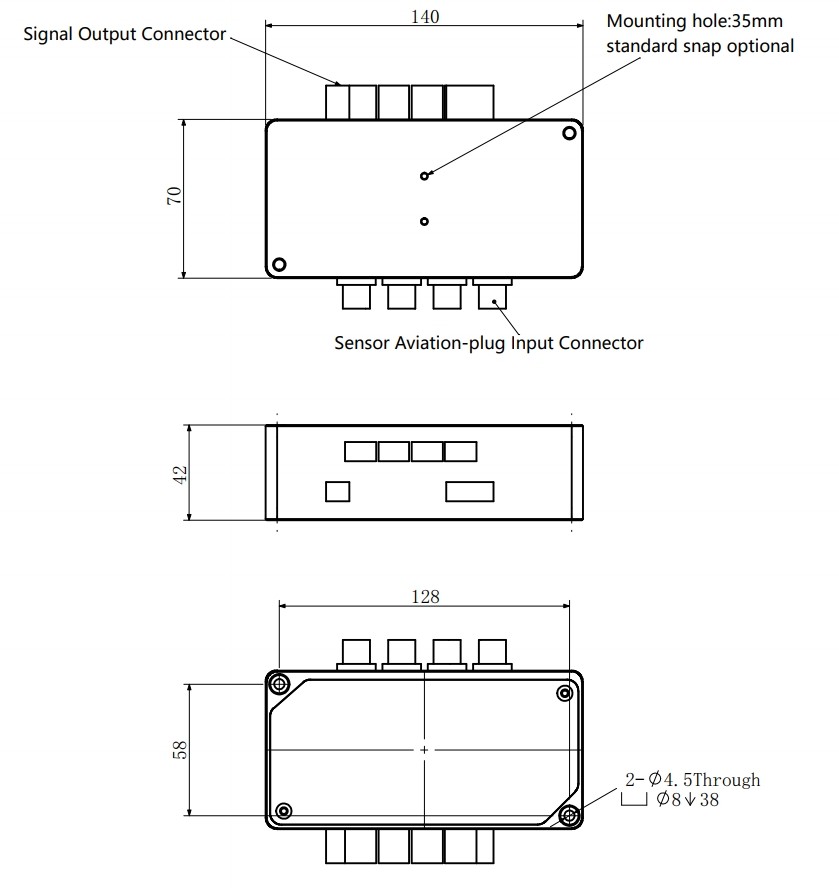

3. Dimension
4. Application
Input Load 4 * 350~1000Ω Sensors IP65 Alumnium Alloy Load Cell
Amplifier FA14 can be used to display values for load cells used in hospitals.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
