XYZ 50N 100N 200N 500N 1000N 2000N 5000N IP66 3 Axis Force Sensor
1. Descriptions
XYZ 50N 100N 200N 500N 1000N 2000N 5000N IP66 3 Axis Force Sensor
FA704 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor
FA704 can be used to measure 3 axis force, its X axis, Y axis and Z
axis force range are all the same 50N,100N,200N,500N,1000N,2000N and 5000N capacity, its Rated output is 1.0mV/V, its Zero Balance
range is ±2%F.S..
2. Specifications
| Product name | 3 Axis Force Sensor |
| Capacity(N) | X:50/100/200/500/1000/2000/5000 Y:50/100/200/500/1000/2000/5000 Z:50/100/200/500/1000/2000/5000 |
| Rated output | 1.0mV/V |
| Zero Balance | ±2%F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Interference error | 0.3%F.S. |
| Temp.effect on output | 0.1%F.S./10 ℃ |
| Temp.effect on zero | 0.1%F.S./10 ℃ |
| Input resistance | 785±10Ω |
| Output resistance | 700±10Ω |
| Insulation resistance | ≥5000MΩ/1000VDC |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~75 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Recommen excitation | 5~12V |
| Maximum excitation | 15V |
| Cable size | ⌀5X4000mm |
| IP Class | IP66 |

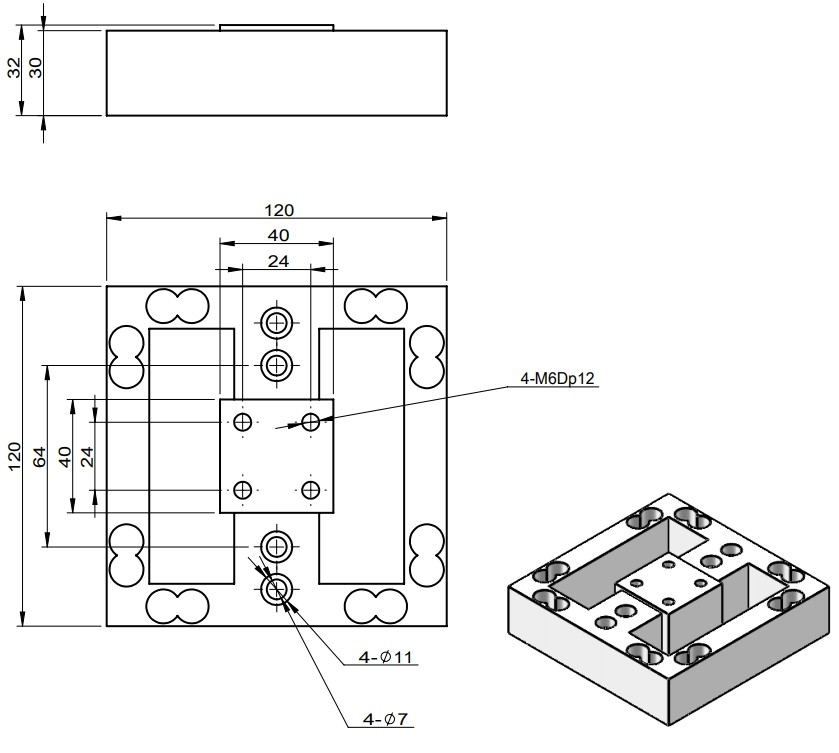

3. Dimension
4. Application
XYZ 50N 100N 200N 500N 1000N 2000N 5000N IP66 3 Axis Force Sensor
FA704 could be used for robot polishing three-axis force detection.
