    Fibos FA05 Weighing Force Controller IP65 Load Cell Indicator With LED

    Ask Lasest Price
    Brand Name : FIBOS
    Model Number : FA05
    Certification : ISO CE RoHS
    Price : To Be Negotiated
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 Pieces per Month
    Delivery Time : 1-7 work days
    • Product Details
    • Company Profile

    Fibos FA05 Weighing Force Controller IP65 Load Cell Indicator With LED

    1. Descriptions

    Fibos best selling FA05 weighing force controller IP65 load cell display with LED​

    Fibos FA05 Weighing Force Controller IP65 Load Cell Indicator With LED


    2. Specifications


    Specification
    Values
    Display
    Double LED
    Readability
    1/90000
    Output linearity
    <0.002%
    Comprehensive accuracy
    ≥0.01%
    A/D conversion speed
    ≤1600 times/s
    Accept sensor
    -3.6~+3.6mV/V
    Input load
    1~8pcs of 350Ω sensors
    Output
    ±10V/0~10V/4~20mA
    Temp. effect on output
    ≤10ppm/℃
    Temp. effect on zero
    ≤10μV/℃
    Excitation voltage
    5VDC
    Power supply
    24±5VDC
    Power waste
    ≤8W
    Operation temp. range
    -20~70℃
    Weight approx.
    0.5kg
    Material
    Aluminium alloy
    IP class
    IP65

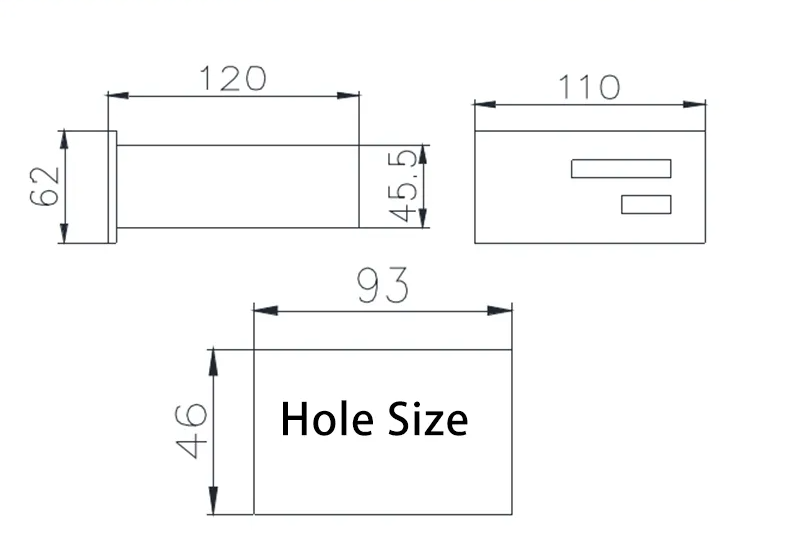

    3. Dimension


    4. Application

    Features&Applications

    A--Wide input range, 0.4~6mV/V can be connected to most strain-bridge sensors. B--Four independent channels, strong load capacity can be connected with 16 350Ω sensors C--Using original imported electronic components, high response frequency, good long-term stability Comprehensive accuracy of ±0.05%FS D--input power reverse connection protection and output short circuit protection E, power supply 18-30VDC (recommended 24VDC) or 15-22VAC F--suitable for pressure pulling pressure torque tension and other kinds of strain bridge sensor
