FA509 SS Shear Beam Weighing Load Cell 0.22 0.55 1.1 1.76 2.2 4.4t For Packing Scale

Ask Lasest Price
Brand Name :	Fibos
Model Number :	FA509
Certification :	CE
Price :	USD 68-138/PC
Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	1000per month
Delivery Time :	7-14work days

Add to Cart

Product Details
Company Profile

FA509 SS Shear Beam Weighing Load Cell 0.22 0.55 1.1 1.76 2.2 4.4t For Packing Scale

FIBOS FA509 SS 0.22/0.55/1.1/1.76/2.2/4.4t Shear Beam Weighing Load Cell For Packing Scale

PRODUCT DETAIL

Features

Shear beam weighing load cell FA509 offers limitless possibilities for applications. The off-center weight sensor is available in six different ranges:0-0.22t,0-0.55t,0-1.1t,0-1.76t,0-2.2t,0-4.4t. The weighing sensor is waterproof to an IP68 rating,so it can be applied to a variety of environments.

High precision
Stainless steel material, strong stability
High waterproof grade

Applications

Packing scale
Hopper scale
Industrial weighing system

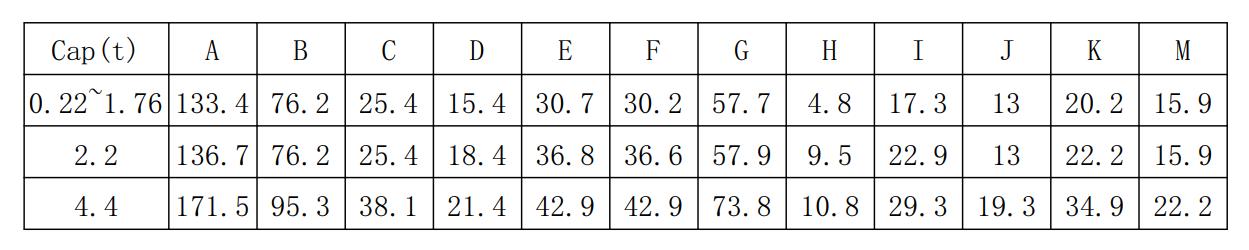

Mounting Dimension

Load Direction

Wiring Code

Specifications

Specifications	Technique
Capacity	0.22,0.55,1.1,1.76,2.2,4.4t
Accuracy class	C3
Rated output	1.94±0.1%mV/V
Zero balance	±2%F.S.
Non-linearity	0.017%F.S.
Hysteresis	0.017%F.S.
Repeatability	0.017%F.S.
Creep(30min)	0.0166%F.S.
Temp.effect on output	0.014%F.S./10℃
Temp.effect on zero	0.0125%F.S./10℃
Input impedance	390±3Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~15V
Maximum excitation	20V
Compensated temp range	-10~40℃
Operation temp range	-30~70℃
Safe overload	150%F.S.
Ultimate overload	300%F.S.
Cable size	Φ5.4×1500mm
Material	Stainless Steel
IP Class	IP68
