Tension Compression Weight Sensor S Beam Load Cell Precision Load
Cell For Automatic Equipments
FEATURES
Featuring unparalleled capabilities for universal S type load cell
10N 20N 50N 100N 200N 300N 500N NF302 of its size, the versatile
and universal FA302 offers limitless possibilities for
applications.
Mini sensor, high precision, anti overload
Stainless steel or aluminum alloy material
Connector assembly for Naturoll industrial amplifiers optionally
available
APPLICATIONS
It can be applied to:
1. Cold and hot pressure testing machine
2. Automatic locking screw machine
3. small installation space force detection
etc...

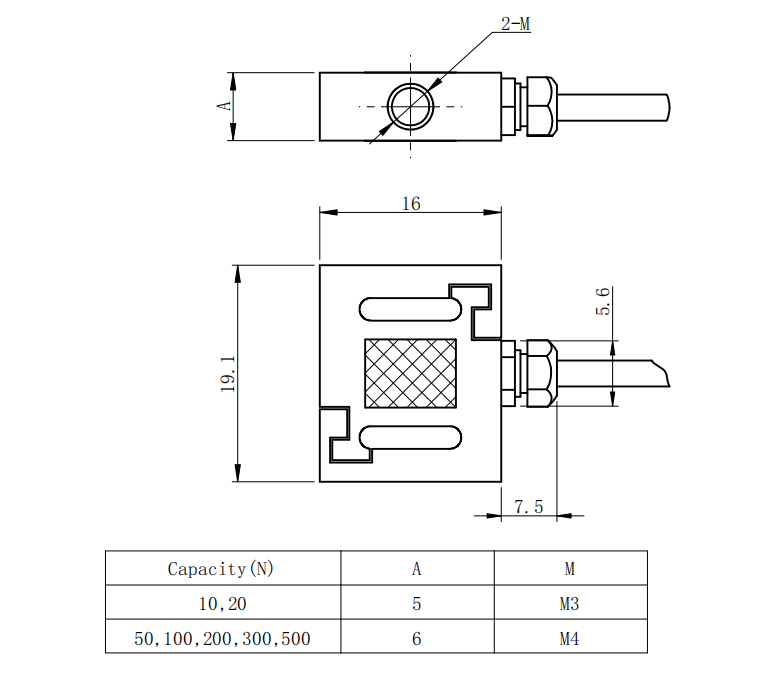

DIMENSION
LOAD DIRECTION
WIRING CODE
SPECIFICATIONS
| Specifications | Technique |
| Capacity | 1,2.5,5,10,20,50,100,200,300,500N |
| Rated Output | 2.0±10%mV/V |
| Zero Balance | ±0.02 mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Input impedance | 350±30Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operating temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ2×3000mm |
