    Miniature 6 Dof Force Sensor Multi Aixs Component Load Cell

    Ask Lasest Price
    Brand Name : FIBOS
    Model Number : FA602B
    Certification : ISO CE RoHS
    Price : To Be Negotiated
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 Pieces per Month
    Delivery Time : 1-7 work days
    • Product Details
    • Company Profile

    Miniature 6 Dof Force Sensor Multi Aixs Component Load Cell

    FA602B Miniature 6 Dof Force Sensor Multi Aixs Component Load Cell


    1. Descriptions

    1. Static torque sensor with small range;

    2. Double flange installation, easy to use;

    3. Protection grade IP65;

    4. Used for static, non-continuous rotation torque measurement.


    2. Specifications


    Product nameTorque Force Sensor
    Capacity0.1,0.2,0.5,1,2,3,5,10Nm
    Rated output1.5±10%mV/V
    Zero Balance±2%mV/V
    Creep(30min)≤0.05%F.S. or customized
    Non-linearity≤0.08%F.S. or customized
    Hysteresis≤0.05%F.S. or customized
    Repeatability≤0.05%F.S. or customized
    Input impedance350±5Ω
    Output impedance350±5Ω
    Temp. effect on output0.05%F.S./10°C
    Temp. effect on zero0.05%F.S./10°C
    Insulation resistance≥5000MΩ/100V(DC)
    Recommended excitation5~15V
    Maximum excitation20V
    Compensated Temp Range-10-60°C
    Operating Temp Range-20-80°C
    Safe overload120%F.S.
    Ultimate overload150%F.S.
    Cable size⌀3x3000mm or customized
    MaterialAluminum alloy

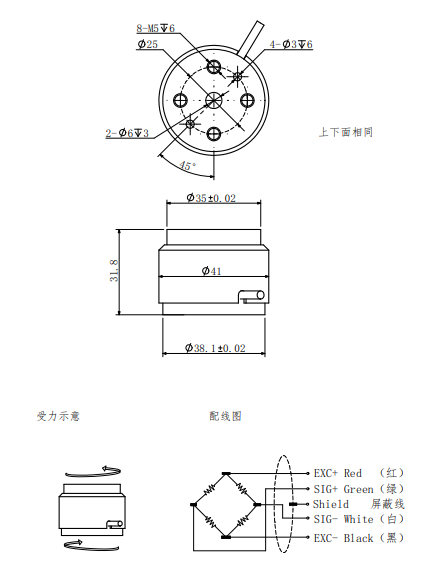

    3. Dimension


    4. Application

    I. Alternating (direct) current motors, servo motors, stepper motors.

    2. Automotive engines, diesel engines, steering gear, overall rigid body twisting, and other parts of the process control and detection.

    3. Electric (manual) actuators, automatic opening and closing control of various valves.

    4. Oil extraction and refining process control and monitoring, monitoring of thermal (hydro) power generation equipment, ore screening control, and monitoring of wind power generation equipment.

    5. A variety of materials torque life test.


    5. FAQ

    Q1: What are your terms of delivery?

    A: EXW, FOB, CFR, and CIF.


    Q2: Can you produce according to the samples?

    A: Yes, we can produce according to your samples or technical drawings.


    Q3:What is your sample policy?

    A: We can supply the sample with a discount if we have ready parts in stock, and customers pay the courier cost.


    Q4: What's your quality guarantee policy?

    A: Quality guarantee: 12 months.

    If the product has a quality problem within 12 months, please return it to us, and we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation, and force majeure will be excepted.

    And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
