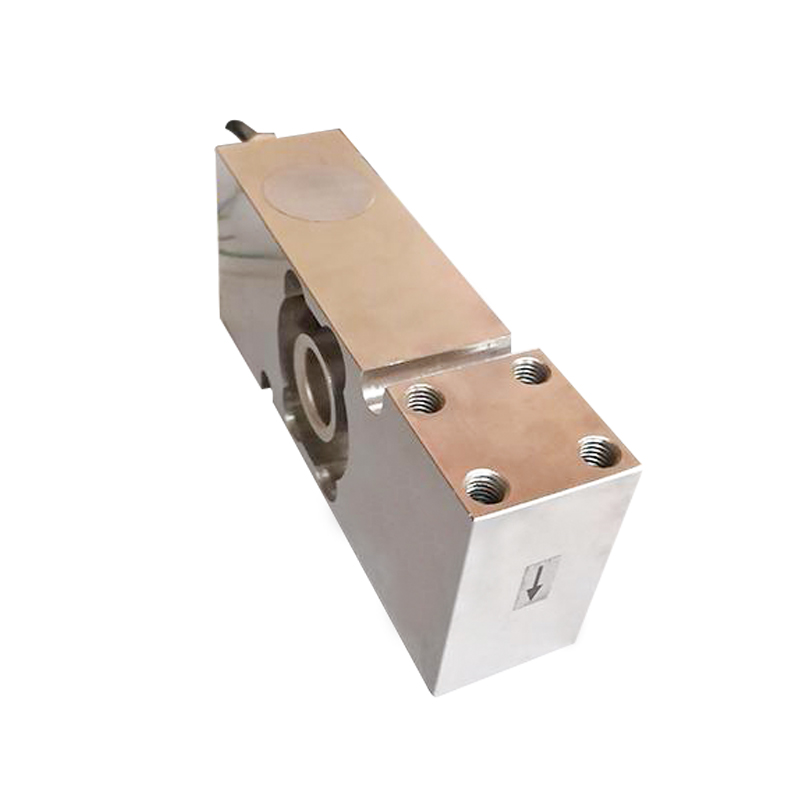

CE Certificate 50kg 500kg 1000kg Stainless steel single point load
cell for platform scale weighing system
1. Descriptions
1. Stainless steel A304, laser welded and sealed
2. Protection grade: IP68, IP69K, applicable to harsh environment
3. Explosion-proof grade: Ex ia IIC T4 Ga; Ex iaD 20 T1354.
Suitable for stainless steel waterproof scales and process weighing
in chemical, food, and pharmaceutical industries
FA5-Series, Single Point Load Cell FA568 can be used to measure
weight 50kg,100kg,200kg,300kg,500kh,1000kg, or customized capacity,
its material we use Stainless steel, and we can also customize
material.
2. Specifications
| size drawing | Force direction |
 |  |
Specifications | Technique |
Capacity | 50,100,200,300,500kg |
Reted output | 2.0±1%mV/V |
Zero Balance | ±2%mV/V |
Creep(30min) | ≤0.01%F.S. |
Non-linearity | ≤0.017%F.S. |
Hysteresis | ≤0.017%F.S. |
Repeatability | ≤0.017%F.S. |
Input resistance | 381±4Ω |
Output resistance | 350±1Ω |
Temp.effect on output | 0.02%F.S./10 C |
Temp.effect on zero | 0.02%F.S./10 C |
Insulation resistance | ≥5000MΩ/100V(DC) |
Recommended excitation | 5~12V |
Maximum excitation | 15V |
Compensated temp range | -10~60 C |
Operating temp range | -20~80 C |
Safe load limit | 150%F.S. |
Breaking load | 200%F.S. |
Cable size | 3m |
4. Application
Suitable for stainless steel waterproof scale and process weighing
in chemical, food, and pharmaceutical industries
Sensor FA568 weighing sensor can be used for weighing in industrial
automation measurement control systems.
Used for electronic belt scales, silo scales, batching scales,
electromechanical combination scales, hook scales, and other force
measurement and control, and computer-controlled batching.
5. Company overview
The core team of Fibos has 20 years of experience in the design and
production of advanced sensors in Germany. We continuously develop
and produce: precision micro and small force sensors, dynamic and
static torque sensors, six-dimensional force, three-dimensional
force, multi-dimensional force sensors, load cells, custom ring
force sensors, thread force sensors, thread preload force sensors,
sensors for robots, tension series and various non-standard force
sensors, etc. The company produces pressure force sensors: accurate
measurement, low height, small deformation, high precision, good
stability, fast response, easy installation, long life, and
complete specifications, and sizes, not only for a push and pull
meters, hopper scales, a variety of industrial weighing systems,
automotive press assembly, automated assembly, 3C product testing;
also used in new energy product assembly, medical testing,
textiles, robotics, mold assembly, wind energy, nuclear power, and
ships, etc. The product dynamic response frequency is high and also
can accept custom specifications. In the application of
high-frequency loud, fatigue strength after the test, life use up
to 100 million times, suitable for all kinds of aircraft, and
automotive testing occasions.
