3kg 6kg 10kg 20kg 30kg 40kg Aluminum Alloy Single Point Weight
Sensor
1. Descriptions
3kg 6kg 10kg 20kg 30kg 40kg Aluminum Alloy Single Point Weight
Sensor FA504 is a model of our brand FIBOS FA5-Series, Single Point
Weight Sensor FA504 can be used to measure weight
3kg,6kg,10kg,20kg,30kg and 40kg capacity, its Creep(30min)
≤0.017%F.S., its Non-linearity,Hysteresis and Repeatability all
≤0.015%F.S..
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 3,6,10,20,30,40kg |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.017%F.S. |
| Non-linearity | ≤0.015%F.S. |
| Hysteresis | ≤0.015%F.S. |
| Repeatability | ≤0.015%F.S. |
| Input impedance | 405±10Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.02%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x400mm |
| Weight | 0.1kg |
| Material | Aluminum alloy |
| Max.platform size | 300mmX300mm |

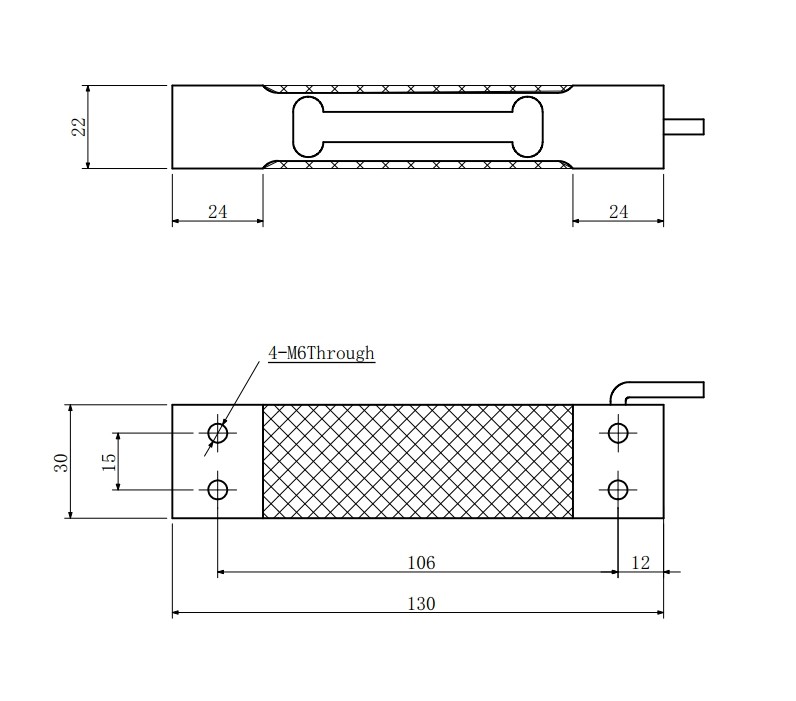

3. Dimension
4. Application
3kg 6kg 10kg 20kg 30kg 40kg Aluminum Alloy Single Point Weight
Sensor FA504 could be used for process control in the machinery
industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
