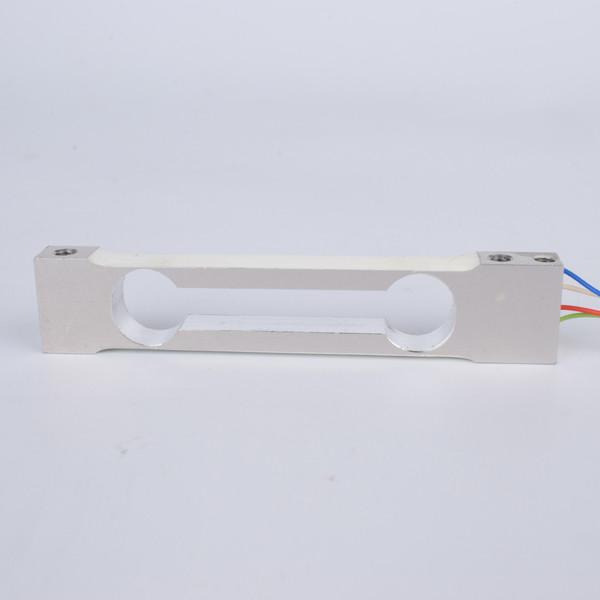

100-200g Aluminum Alloy Single Point Weight Sensor
1. Descriptions
100-200g Aluminum Alloy Single Point Weight Sensor FA507 is a model
of our brand FIBOS FA5-Series, it belongs to Single Point Weight
Sensor category, Single Point Weight Sensor FA507 can be used to
measure weight ranges from 100g up to 200g, its Creep(30min)
≤0.0166%F.S., its Non-linearity,Hysteresis and Repeatability all
≤0.015%F.S..
2. Specifications
| Product name | Single Point Weight Sensor |
| Capacity | 100,200g |
| Rated output | 0.9±0.1mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.015%F.S. |
| Hysteresis | ≤0.015%F.S. |
| Repeatability | ≤0.015%F.S. |
| Input impedance | 405±20Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.02%F.S./10 ℃ |
| Temp.effect on zero | 0.03%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -10~50 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | 4-⌀1x100mm |
| Weight | 0.1kg |
| Material | Aluminum alloy |
| Max.paltform size | 50mm*50mm |

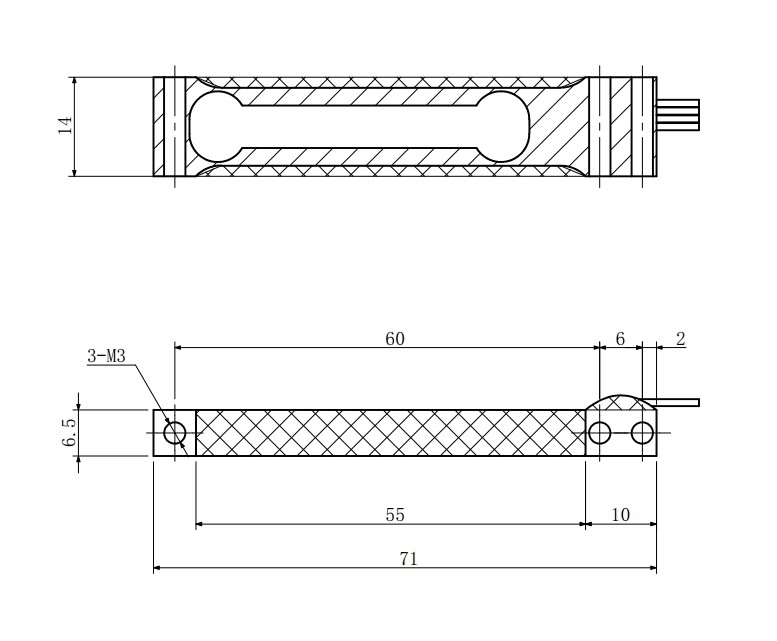

3. Dimension
4. Application
100-200g Aluminum Alloy Single Point Weight Sensor FA507 could be used for weighing scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
