Input Load 8 * 350~1000Ω Sensors ≤0.1%F.S. Support RS485/232 Load
Cell Amplifier
1. Descriptions
Input Load 8 * 350~1000Ω Sensors ≤0.1%F.S. Support RS485/232 Load
Cell Amplifier FA07-A8 is a model of our FIBOS Load Cell Amplifier
and instrument series, its Comprehensive accuracy ≤0.1%F.S., it can
be connected to 8 units of 350~1000Ω sensors, its Sensor excitation
voltage range is 5VDC±2%, 100mA or 12VDC is optional.
2. Specifications
| Product name | Load Cell Amplifier |
| Input specifications | 0.4~6mV/V |
| Comprehensive accuracy | ≤0.1%F.S. |
| Sensor excitation voltage | 5VDC±2%, 100mA (or
12VDC optional) |
| Power supply | DC:15V~30V |
| Input load | Up to 8 units of 350~1000Ω sensors can be connected |
| Interface | RS485/232(one of two options) (Free/Modbus RTU/ASCII protocol) |
| Operating temp range | -30~60 ℃ |
| Withstand voltage | One minute at 2000V AC50/60Hz |
| Surrounding environment | Humidity:-10~55℃ Storage:-25~65℃ Humidity:35~85%RH Storage:35~85%RH |
| A/D performance | 24-bit, Delata-Sigma method |
| Output rate | 10/40/640/1280 Times/sec |

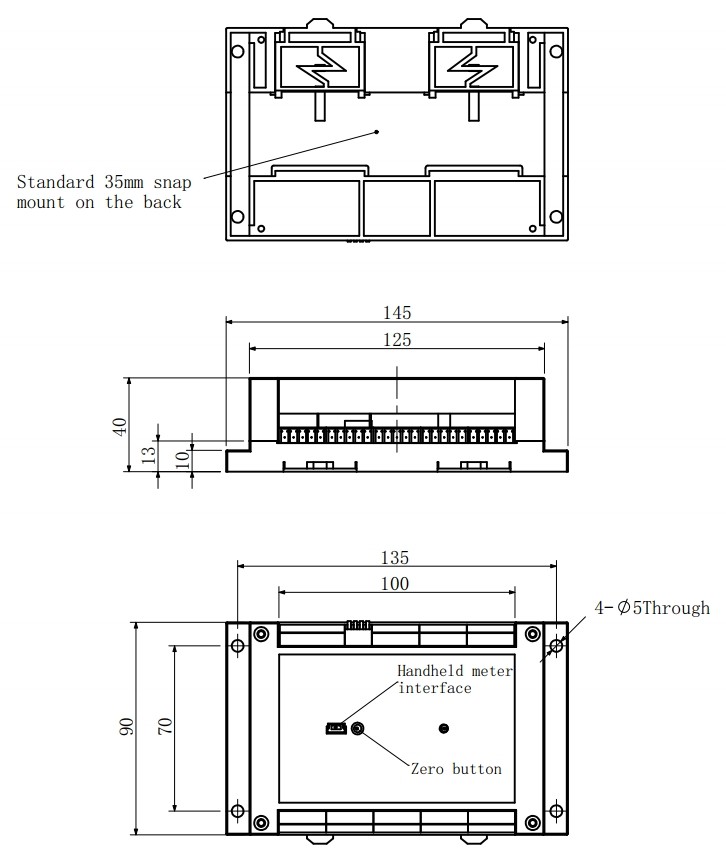

3. Dimension
4. Application
Input Load 8 * 350~1000Ω Sensors ≤0.1%F.S. Support RS485/232 Load
Cell Amplifier FA07-A8 can be used to display values from Spoke
Type Load Cell.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
