FA102100-1000N Mini Force Sensor Stainless Steel Small Button Force
Measurement Transducers
1. Descriptions
100-1000N Stainless Steel Miniature Force Sensor FA102 is a model
of our brand FIBOS FA1-Series, Miniature Force Sensor FA102 can be
used to measure force 100N,200N,500N and 1000N capacity, its Rated
output range is 1.0±20% mV/V, and its Zero balance range is
±2%F.S., its Cable size is ⌀2x3000mm.
In the measurement process of the micro-pressure sensor, the
pressure directly acts on the diaphragm of the sensor, so that the
diaphragm generates a micro displacement proportional to the medium
pressure, so that the resistance of the sensor changes, and the
electronic circuit detects the change, and converts a standard
signal corresponding to the pressure, such a process is the
measurement process of the micro-pressure sensor.
2. Specifications
| Product name | miniature force sensor |
| Capacity | 100,200,500,1000N |
| Rated output | 1.0±20% mV/V |
| Zero balance | ±2%F.S. |
| Creep(30min) | ≤0.5%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.2%F.S. |
| Input resistance | 600~800Ω |
| Output resistance | 600~800Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀2x3000mm |
| Weight | 0.02kg |
| Material | Stainless steel |

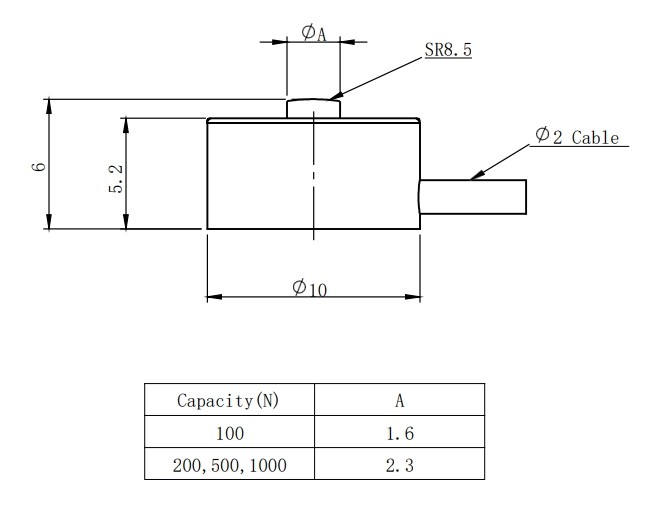

3. Dimension
4.Advantages:
low height, small deformation, small size; High precision, good
long-term stability, good reliability, fatigue resistance, impact
resistance, high frequency of use. Because it is stainless steel, the cable shield and sensor housing
are electrically connected to form the Faraday cage. This also
ensures that it can be used for interference-free measurement under
unfavorable electromagnetic compatibility conditions. The operating
temperature range is -20℃~80℃.
5. Application
automotive press assembly, automatic assembly, 3C product testing,
new energy product assembly, medical testing, robotics, mold
assembly and other industrial testing, measurement and control
systems
