Stainless Steel 10-2000kg Industrial Automation Miniature Force
Sensor
1. Descriptions

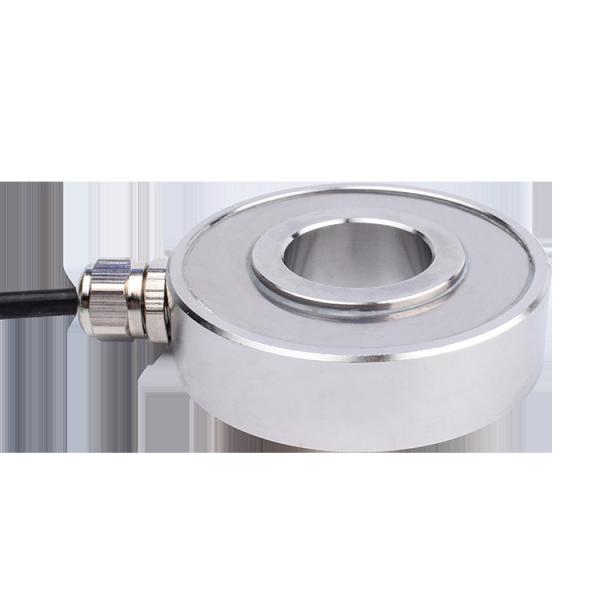

10-2000kg Stainless Steel miniature force sensor FA115 which is in
Miniature Force Sensor category of our brand FIBOS FA1-Series,
Miniature Force Sensor FA115 can be used to measure load ranges
from 10kg,20kg,50kg,100kg,200kg,500kg ,1000kg up to 2000kg
capacity, its Repeatability ≤0.1%F.S..
2. Specifications
| Product name | Miniature Force sensor |
| Capacity | 10,20,50,100,200,500,1000,2000kg |
| Rated output | 1.5±20%mV/V |
| Zero Balance | ±0.05mV/V |
| Weight | 0.3kg |
| Non-linearity | ≤0.2%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation20 | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm |
| Material | Stainless steel |
3. Dimension
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
