    50-1000n Tension Compression Force Sensor 0.5% Miniature Load Cell Sensor

    Diameter 13mm 50-1000N Miniature Tension Compression Force Sensor


    1. Descriptions

    Diameter 13mm 50-1000N Miniature Tension Compression Force Sensor FA201A is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor FA201A belongs to FA201, it can be used to measure tension and compression force 50N,100N,200N,500N,1000N and 2000N or customized capacity, its Zero Balance range is ±0.2mV/V.


    2. Specifications


    Product nameTension Compression Force Sensor
    Capacity50,100,200,500,1000,2000N or customized
    Rated output1.0±20%mV/V
    Zero Balance±0.2mV/V
    Creep(30min)≤0.2%F.S. or customized
    Non-linearity≤0.2%F.S. or customized
    Hysteresis≤0.3%F.S. or customized
    Repeatability≤0.1%F.S. or customized
    Input impedance

    800~1100Ω

    Output impedance800~1100Ω
    Temp.effect on output0.05%F.S./10 ℃
    Temp.effect on zero0.05%F.S./10 ℃
    Insulation resistance≥5000MΩ/100V(DC)
    Recommended excitation5~12V
    Maximum excitation15V
    Compensated Temp Range-10~60 ℃
    Operating Temp Range-20~80 ℃
    Safe overload150%F.S.
    Ultimate overload200%F.S.
    Cable size⌀2x3000mm or customized
    Weight0.2kg or customized
    MaterialStainless steel or customized

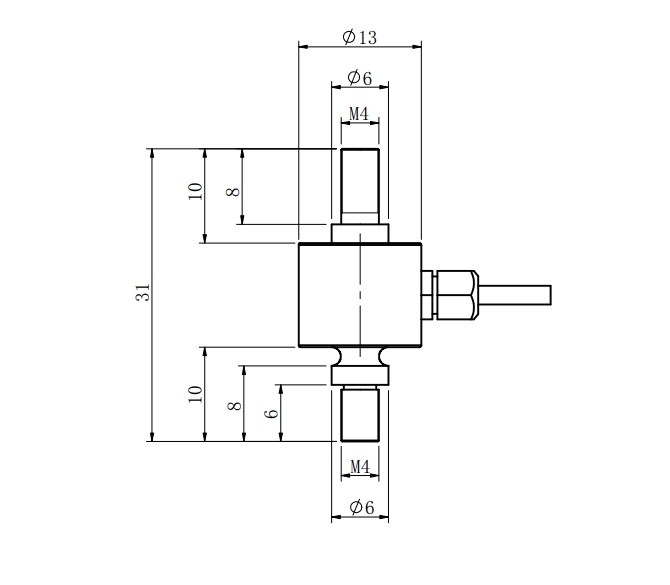

    3. Dimension

    50-1000n Tension Compression Force Sensor 0.5% Miniature Load Cell Sensor50-1000n Tension Compression Force Sensor 0.5% Miniature Load Cell Sensor


    4. Application

    Diameter 13mm 50-1000N Miniature Tension Compression Force Sensor FA201A could be applied for material testing machine.


    5.FAQ

    Q1: What is your terms of delivery?

    A: EXW, FOB, CFR and CIF.


    Q2: Can you produce according to the samples?

    A: Yes, we can produce according to your samples or technical drawings.


    Q3:What is your sample policy?

    A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.


    Q4: What's your quality guarantee policy?

    A: Quality guarantee: 12 months.

    If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

    And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
