50μM/M IP66 Stainless Steel Strain Gauge Weight Sensor Tension
Force Sensor
1. Descriptions

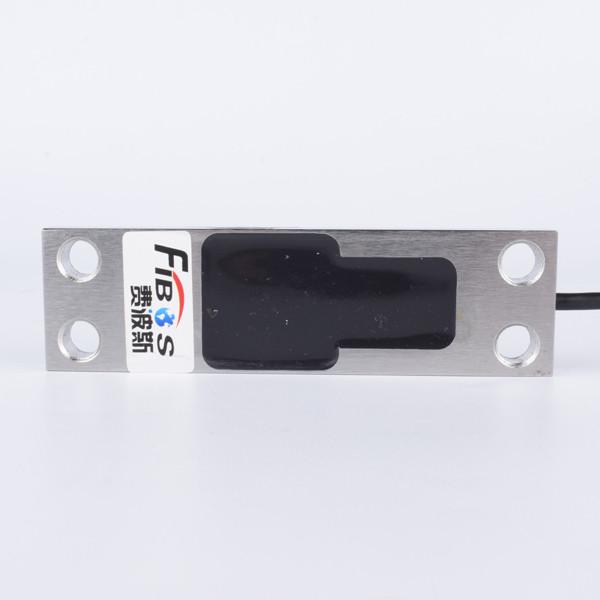

50μM/M IP66 Stainless Steel Strain Gauge Weight Sensor Tension
Force Sensor FA902 is a model of our brand FIBOS FA9-Series, Strain
Gauge Weight Sensor Tension Force Sensor FA902 can be used to
measure tension force 50μm/m, its Input impedance and Output
impedance both are 1000±10Ω, its IP Class is IP66.
2. Specifications
| Product name | Tension Force Sensor |
| Capacity | 50μm/m |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Input impedance | 1000±10Ω |
| Output impedance | 1000±10Ω |
| Temp.effect on output | 0.2%F.S./10 ℃ |
| Temp.effect on zero | 0.5%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -20~60 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |
| Weight | 0.4kg |
| Material | Stainless steel |
| IP Class | IP66 |
3. Dimension

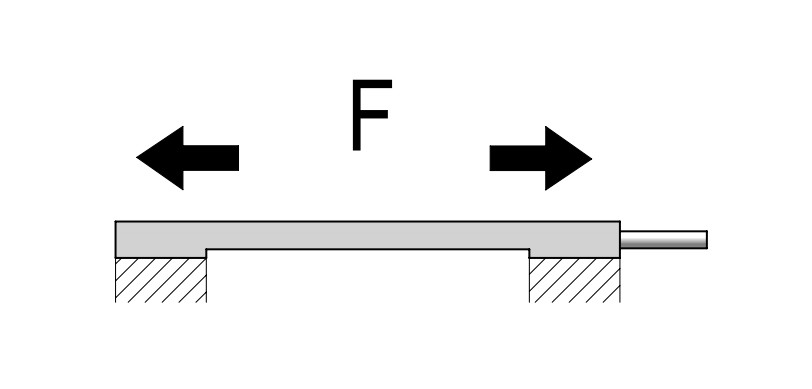

4. Application
50μM/M IP66 Stainless Steel Strain Gauge Weight Sensor Tension
Force Sensor FA902 can be used in the textile industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
