3 Axis Load Cell 5N 10N 20N 30N 50N

Ask Lasest Price
Brand Name :	Fibos
Model Number :	FA702
Certification :	CE
Price :	USD 380-520/PC
Payment Terms :	Western Union, T/T, L/C
Supply Ability :	1000per month
Delivery Time :	7-14working days

Add to Cart

Product Details
Company Profile

3 Axis Load Cell 5N 10N 20N 30N 50N

Fibos FA702 3-Axis Load Cell 5N 10N 20N 30N 50N

PRODUCT DETAIL

Features

3-axis load cell 5N 10N 20N 30N 50N FA702 is available in a capacity range from 5N to 50N for all three axes. The Triaxial force sensor offers an excellent solution for measuring Fx, Fy, and Fz loads. The multi axis load cell converts load into an electrical output signal.

High precision
Strong resistance to partial load
Easy to install

Applications

Crash tests
Automation equipment
Force control in robotics

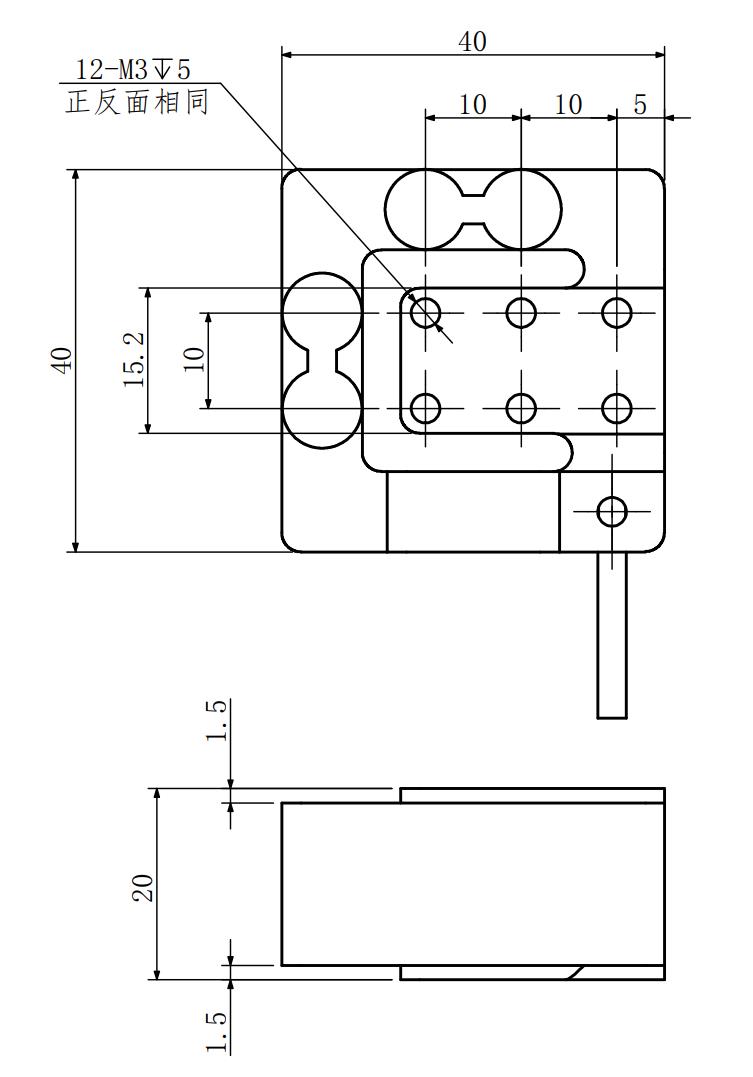

Mounting Dimension

Load Direction

Wiring Code

Specifications

Specifications	Technique
Capacity(N)	X: 5/10/20/30/50;Y:5/10/20/30/50;Z:5/10/20/30/50
Capacity(N)	X: 5/10/20/30/50;Y:5/10/20/30/50;Z:5/10/20/30/50
Rated output	≈1.0mV/V
Zero balance	±2%F.S.
Non-linearity	0.2%F.S.
Hysteresis	0.2%F.S.
Repeatability	0.2%F.S.
Interference error	0.5%F.S.
Temp. effect on output	0.1%F.S./10℃
Temp. effect on zero	0.1%F.S./10℃
Input impedance	350±10Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~12V
Maximum excitation	15V
Compensated temp range	-10~40℃
Operation temp range	-20~75℃
Safe overload	150%F.S.
Ultimate overload	300%F.S.
Cable size	Φ3.2×3000mm
