10t 20t 25t 30t 40t 50t 0.02%F.S. Nickel Plated Alloy Steel
Weighing Module
1. Descriptions
10t 20t 25t 30t 40t 50t 0.02%F.S. Nickel Plated Alloy Steel
Weighing Module FA810 is a model of our brand FIBOS FA8-Series,
Weighing Module FA810 can be used to measure load 10t,20t,25t,30t,40t and 50t capacity, its Rated output range is
2.0±2%mV/V, its Zero balance range is ±0.02mV/V, its
Non-linearity,Hysteresis and Repeatability all are 0.02%F.S..
2. Specifications
| Product name | Weighing Module |
| Capacity | 10t/20t/25t/30t/40t/50t |
| Rated output | 2.0±2%mV/V |
| Zero balance | ±0.02mV/V |
| Non-linearity | 0.02%F.S. |
| Hysteresis | 0.02%F.S. |
| Repeatability | 0.02%F.S. |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Input impedance | 406±6 Ω |
| Output impedance | 350±3 Ω |
| Insulation impedance | ≥5000MΩ/50VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 18V |
| Compensated temp range | -10~40 ℃ |
| Operation temp range | -35~65 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Material | Nickel plated alloy steel |

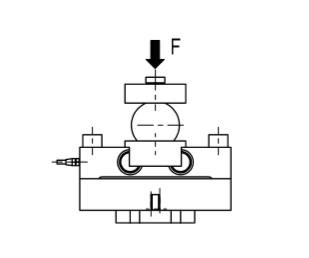

3. Dimension
4. Application
10t 20t 25t 30t 40t 50t 0.02%F.S. Nickel Plated Alloy Steel
Weighing Module FA810 can be used for blending systems in industrial industry.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical
drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in
stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return
it to us, we will repair it, if we can't repair it successfully, we
will give you a new one; but the man-made damage, improper
operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay
the shipping cost of delivering to you.
